Description

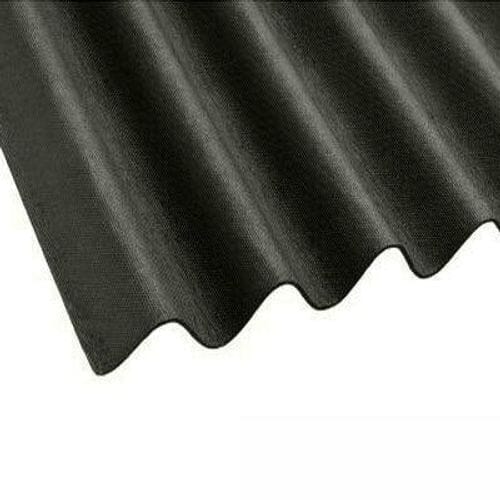

Coroline bitumen roof sheets are a light-weight, easy to install, DIY friendly roof sheets ideally suited for many home and garden projects. Available in black, red, green and brown. Corrugated roof sheets suitable for installation onto low pitch roofs with matching ridge tiles, verge trims and fixings, for the perfect summer house and garden sun room. Often compared to Onduline, Coroline sheets are 2.6mm compared to Onduline sheets which are 3mm – that’s a difference of only 0.4mm!
Uses | Properties |

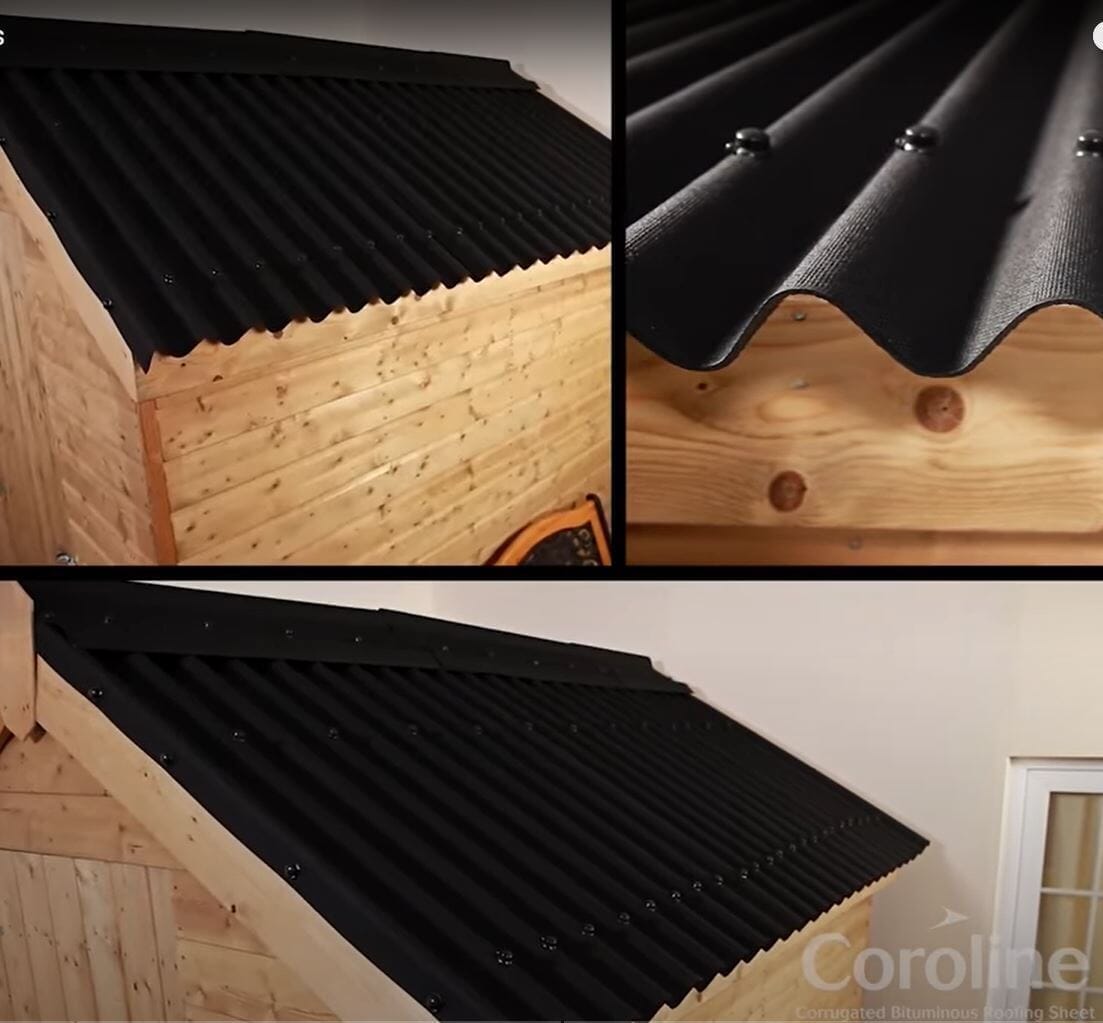

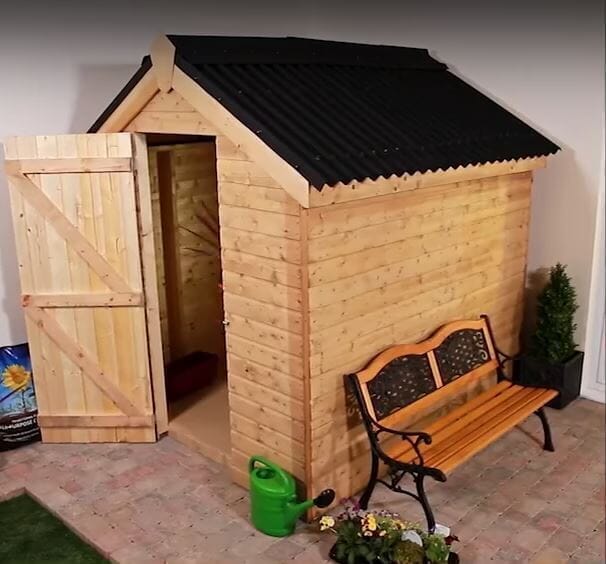

Garden Shed Roof Covering | Minimum Pitch: 5 degrees |

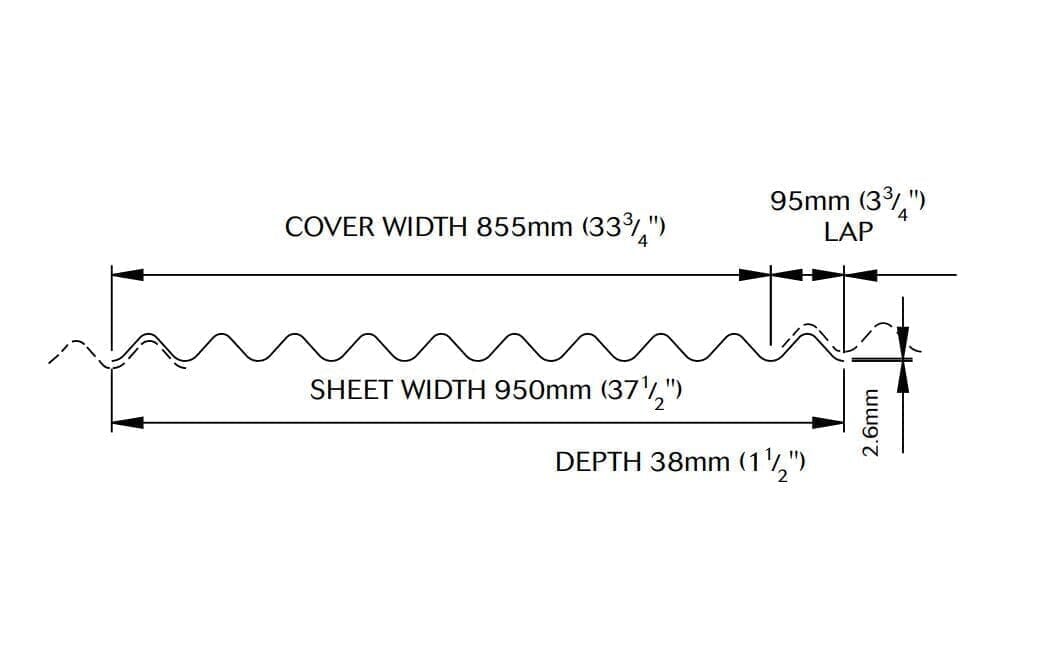

Garage Roof Covering | Sheet size: 2000mm 950mm |
Stables / Animal Shelter | Cover Width: 855mm |
Log Store | Thickness: 2.6mm |
Garden Room Roof Cover | Weight: 2.9/m² |
Summerhouse Roof cover | Corrugation: 38mm height 95mm Width |
U Value 4.4W2K | |
High insulation & Sound absorbency values ( Great for animal shelters ) |
Roof Pitch | Support | End Lap | Side Lap |
Less than 10 degrees Gradient 1in12 to 1 in 6 |
Decking |
300mm |
2 Corrugations |
10-15 degrees Gradient 1in 6 to 1 in 4 |
Purlins 450mm |
200mm |
1 Corrugations |
Greater than 15 degrees Gradient 1 in 4 or less |
Purlins 600mm |
170mm |
1 Corrugations |
20 Number of Fixings Required per sheet on average
*15 Year Warranty
This product is covered by a 15 year waterproof guarantee. A replacement is provided free of charge if the product has failed to remain waterproof, in normal weather conditions within a 15 year period from the date of purchase. *Coroline MUST be fixed and maintained in accordance with the manufacturer's instructions for the warranty to remain valid. Re-erections or consequential damage costs are not included.
