Corotherm Glazing Bar Cap and Base with End Cap

SKU: BHPO

Colour: White
Price
£33.34 Incl. VAT
£27.78 Ex. VAT
Estimated Delivery:

Please note - Corotherm items up to 10-15 working days lead time at the moment

The Corotherm Glazing Bars are an essential part of the Corotherm polycarbonate roof system, designed to securely join polycarbonate sheets while creating a strong, weather resistant connection. Ideal for carports, lean tos, canopies, verandas, and covered outdoor areas, these glazing bars provide reliable support and a clean, professional finish for polycarbonate roofing installations.

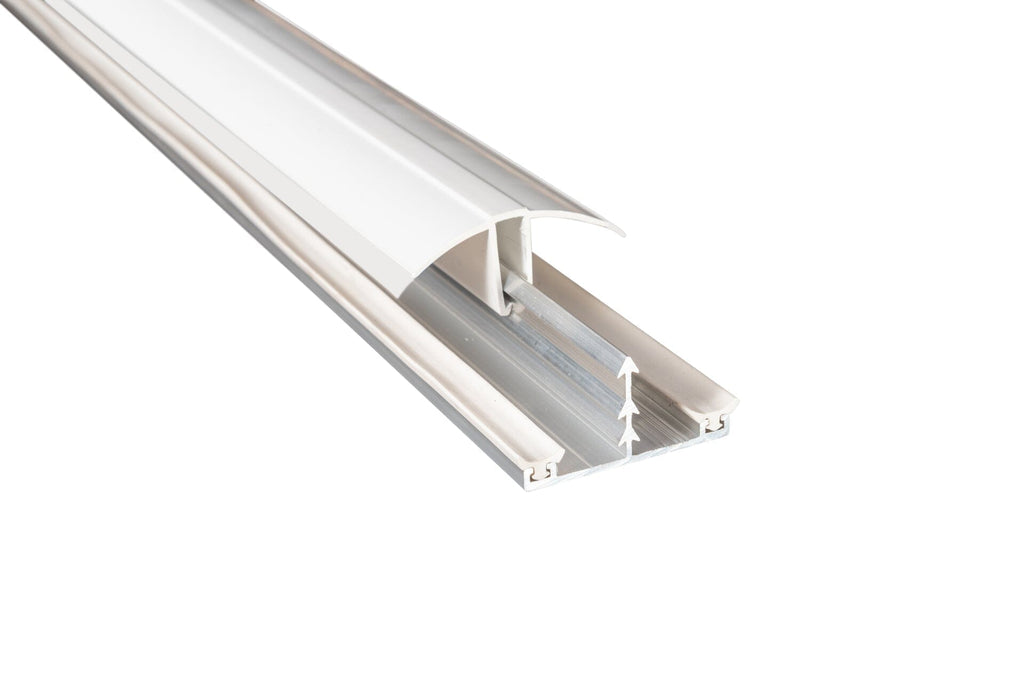

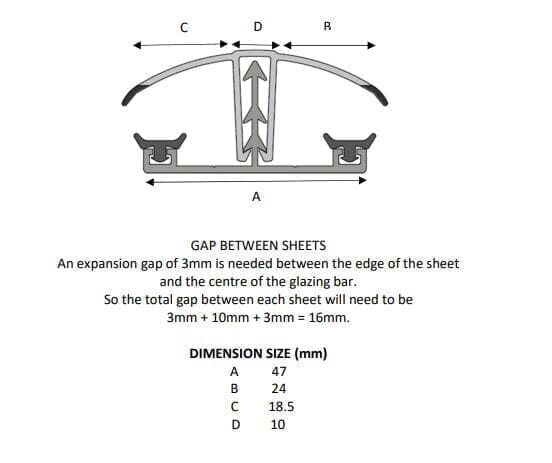

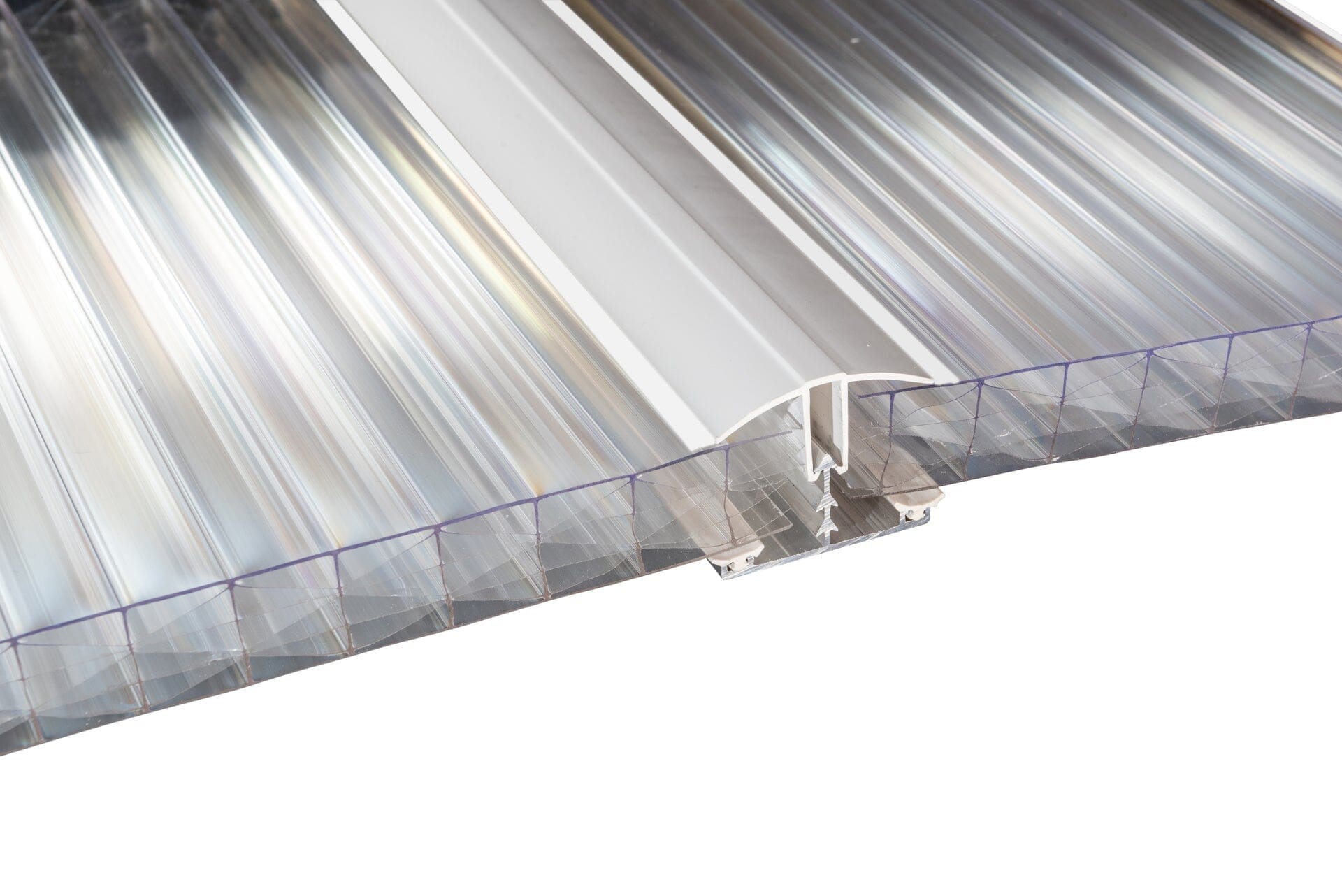

Designed for joining sheets side by side, the glazing bar system creates a secure and watertight seal between adjoining polycarbonate sheets. Each glazing bar is supplied in two sections, consisting of a T shaped base and a snap fit cap. The base is fixed directly onto the roof rafter before the polycarbonate sheets are positioned with the required expansion gap. The cap is then pushed firmly into place to lock the sheets securely and form a sealed joint.

These Corotherm glazing bars are quick to install and help accommodate natural thermal movement within the polycarbonate sheets, supporting long term roofing performance. Please note that they are designed for side to side sheet connections only and cannot be used to join sheets end to end.

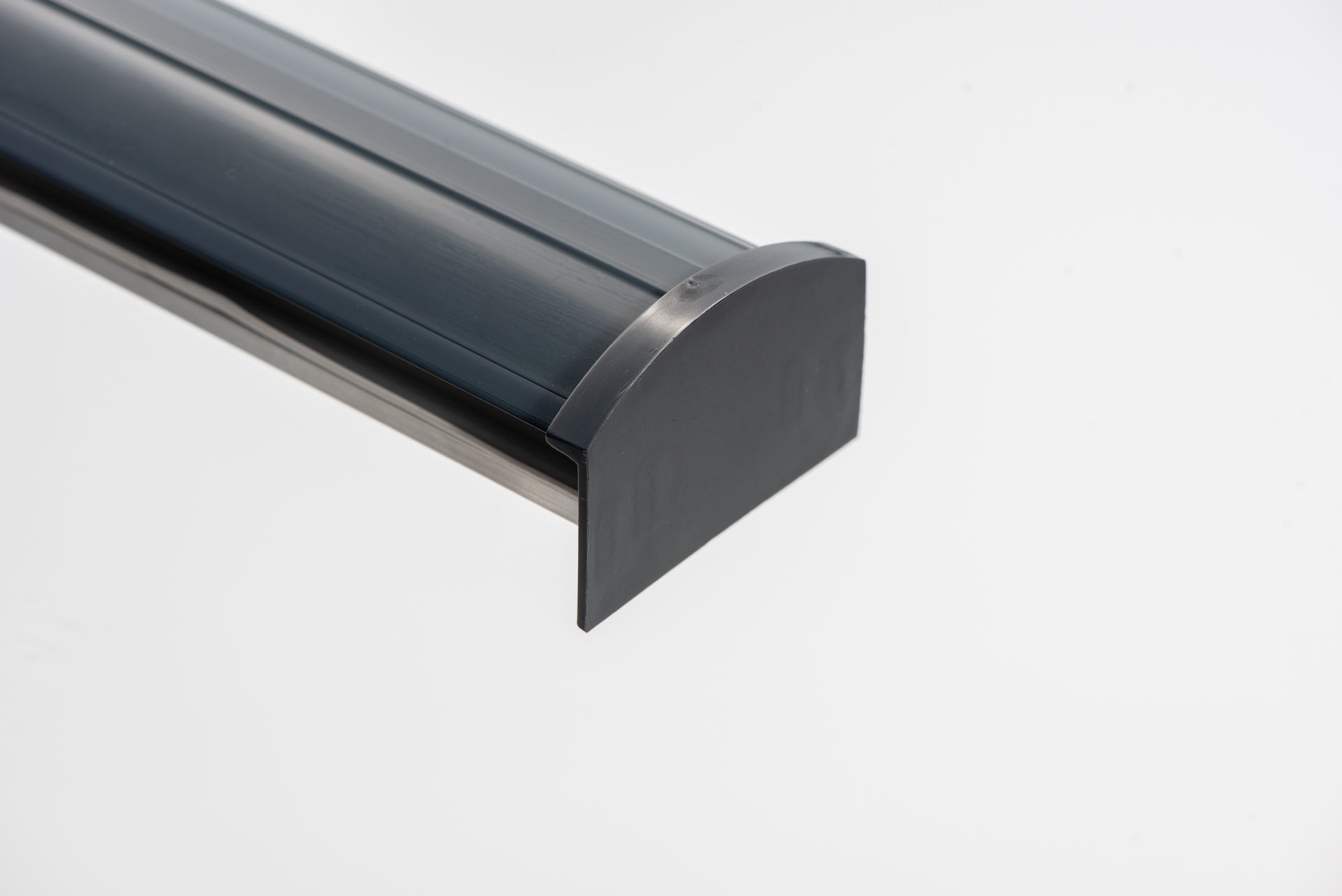

Each glazing bar is supplied with one end cap as standard, suitable for installations where one end meets a wall or building. If both ends of the glazing bar remain visible, an additional glazing bar end cap will be required for a fully finished appearance.

Why Choose the Corotherm Glazing Bar Cap and Base with End Cap?

  • Available in 3, 4, and 6m lengths
  • Suitable for 10mm, 16mm, 25mm
  • White and anthracite grey available

Product Specifications:

Length Options:

  • 3m
  • 4m
  • 6m

Colour Options:

  • White
  • Anthracite Grey
