FAKRO EHV-A Universal Flashing Kit for Profile/Interlocking Tiles up to 90mm

SKU: EHV-A 01

Price
£103.09 Incl. VAT
£85.91 Ex. VAT
See Full Range
Estimated Delivery:

3-5 working days delivery

Important Information:

This Flashing kit is a newer Universal Option which has replaced both the older style EHN-A and EZV-A Flashings.

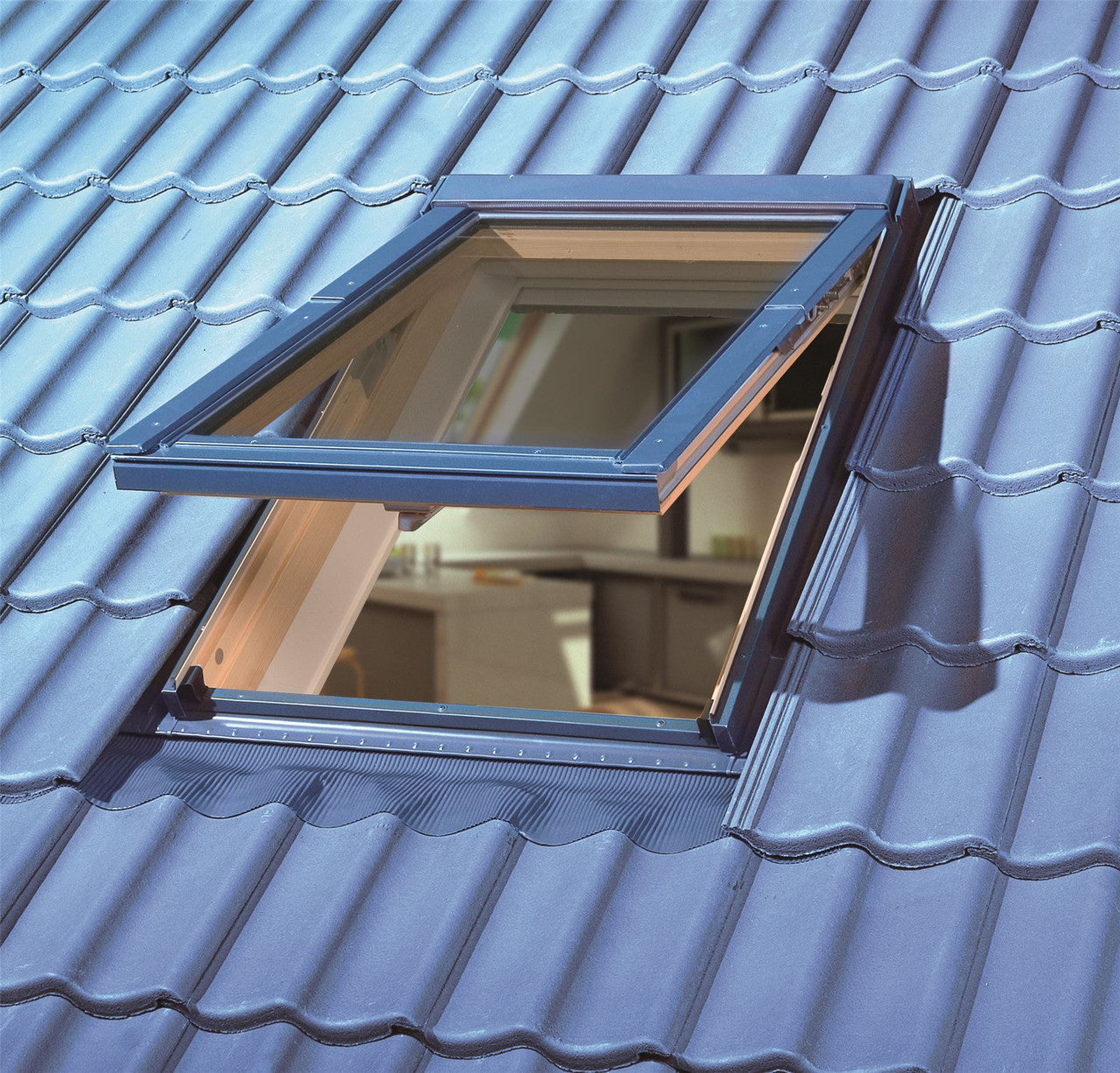

The FAKRO EHV-A flashing kit seals a FAKRO pitched roof window into roofs covered with interlocking tiles – such as pantiles and double Roman tiles – or high-profile metal sheet, with a profile height of up to 90mm. It fits the window at FAKRO's standard installation depth (V) on roofs pitched from 15° to 90°.

EHV-A is FAKRO's current all-in-one flashing for profiled roofs. It replaces both the EZV-A (profiles up to 45mm) and the EHN-A (which sat the window 30mm higher in the roof), and is available on a shorter lead time.

Features

  • One flashing for tiles and profiled sheet up to 90mm profile height
  • Standard installation depth (V) – window sits in line with the roof

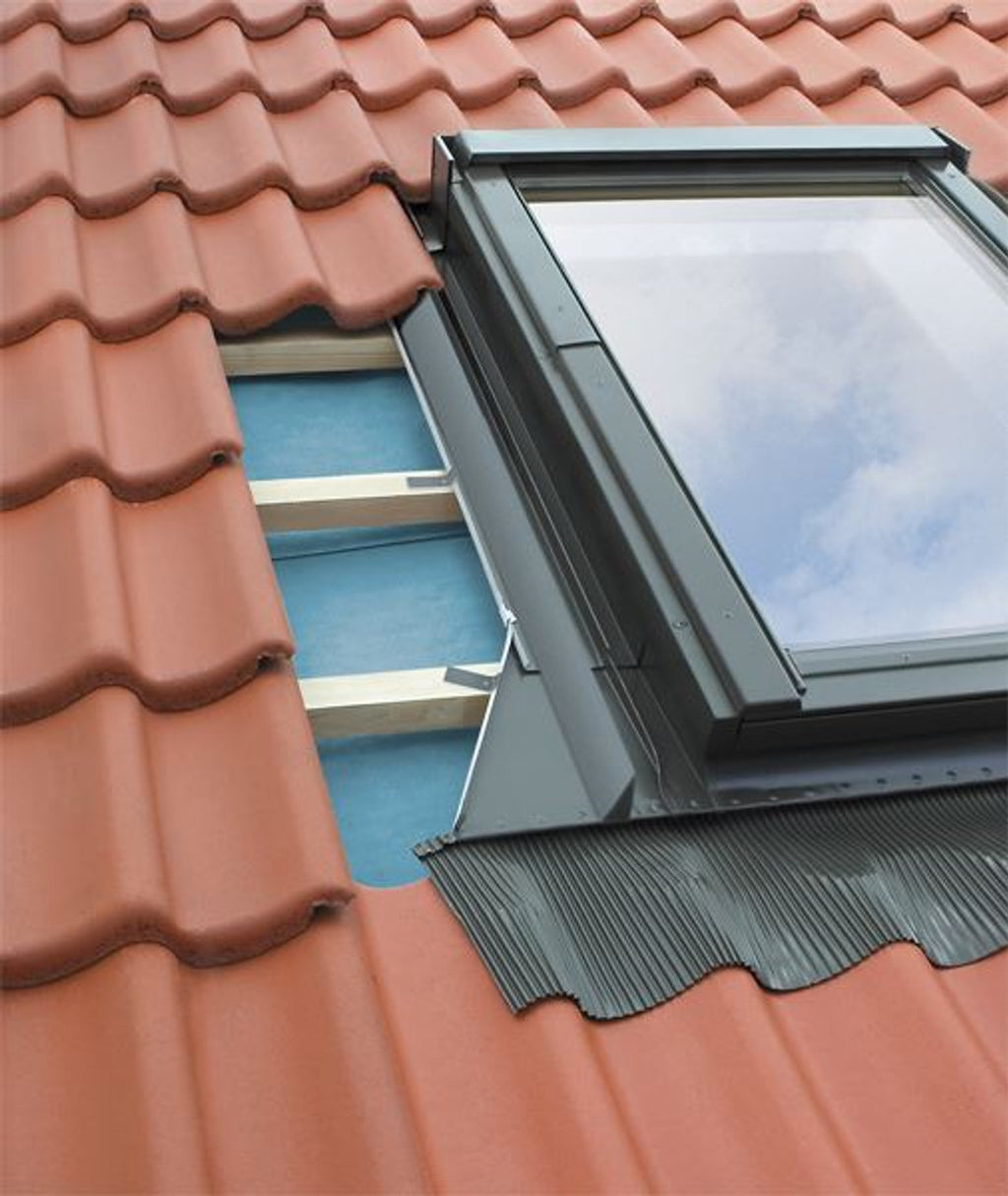

  • Wide aluminium-plastic apron with self-adhesive compound underneath for a tight fit over the tiles
  • Sealing wedges keep out dust, leaves and wind-driven snow
  • Drainage gutter carries condensation from the underlay to the outside
  • For FAKRO centre pivot, top hung, escape and balcony windows

Specifications

Model FAKRO EHV-A
Roof covering Interlocking / profiled tiles and profiled sheet, up to 90mm profile
Roof pitch 15° – 90°
Installation depth V (standard)
Material Coated aluminium with aluminium-plastic apron
Colour Grey-brown, RAL 7022

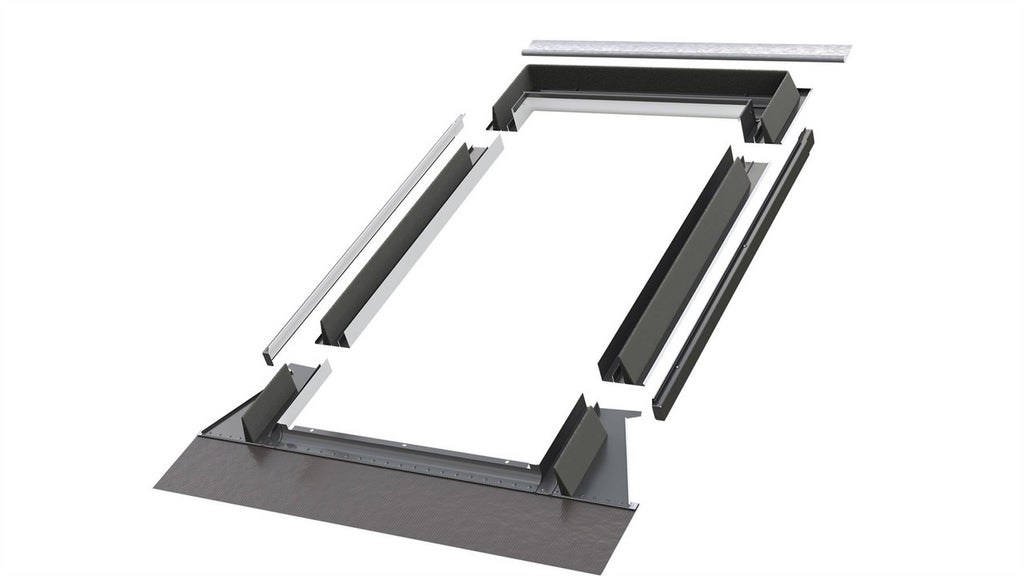

Contents Top, bottom and two side elements, frame side covering profiles, drainage gutter, sealing wedges, fixing set and fitting instructions

Available Sizes

FAKRO size code Window size (W x H)
01 55 x 78 cm
02 55 x 98 cm
16 55 x 118 cm
22 66 x 78 cm
03 66 x 98 cm
04 66 x 118 cm
05 78 x 98 cm
06 78 x 118 cm
07 78 x 140 cm
13 78 x 160 cm
08 94 x 118 cm
09 94 x 140 cm
80 94 x 160 cm
10 114 x 118 cm
11 114 x 140 cm
12 134 x 98 cm

Choose the flashing with the same size code as your FAKRO roof window – the code is on the window's data plate and in its product name.

Need help choosing the right flashing? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
