Klober Profile-Line Flat Tile Vent

SKU: KG9856-3-0152

Color: Terracotta
Price
£62.82 Incl. VAT
£52.35 Ex. VAT
See Full Range
Estimated Delivery:

2-3 working days

The Klober Profile-Line Flat Tile Vent is an in-line vent tile for flat-profile (slate-effect) concrete interlocking tiles such as Marley Modern, Redland Mini Stonewold and Russell Grampian. Its built-in downpipe gives 10,000mm² of free ventilation directly into the roof space. Suitable for roof pitches of 20° and above.

For soil-pipe or mechanical extract use, fit the Klober 100mm adaptor (KG979100) and Klober Flexipipe 100mm (KG979900).

Compatible Tiles

Tile manufacturer Tile Notes
Marley Modern
Marley Duo Modern
Redland Mini Stonewold
Redland Mockbond Mini Stonewold
Russell Grampian
Russell Highland
Sandtoft (Wienerberger) Calderdale Not Calderdale Edge
Sandtoft (Wienerberger) Dual Calderdale Flat Not Dual Calderdale Edge
Breedon Flat
Mannok Western Slate
Northstone Donard

Thin-leading-edge tiles (e.g. Marley Edgemere, Russell Galloway) need Klober's Thin Line vent instead.

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Profile-matched to flat interlocking concrete tiles – sits in line with the surrounding tiles
  • Built-in downpipe gives direct ventilation into the roof space
  • 10,000mm² free ventilation area per vent
  • Fixing clip locates under the left-hand interlock of the adjoining tile
  • Use at high or low level
  • Can terminate a soil vent pipe or extract fan with the 100mm adaptor and Flexipipe

Specifications

Manufacturer code KG9856-3
Free ventilation area 10,000mm² per vent
Extraction connection Via 100mm adaptor KG979100 + Flexipipe 100/100mm KG979900 (or combined set KG979200)
Airflow resistance 7 / 29 / 115 Pa at 15 / 30 / 60 l/s (54 / 108 / 216 m³/h)
Dimensions (W x L x D) 330 x 418 x 70mm
Minimum pitch 20°
Material ASA
Colours Antique Red, Terracotta, Brown, Slate Grey, Black
Weight 0.9kg each
Manufacturer pack 10 per carton, 120 per pallet (Klober)
Vent spacing to BS 5250 2m centres (5,000mm²/m), 1m (10,000mm²/m), 0.4m (25,000mm²/m)
Guarantee 10 years against manufacturing defects (Klober)

Colours

Colour Manufacturer code
Antique Red KG9856-3-0116
Terracotta KG9856-3-0152

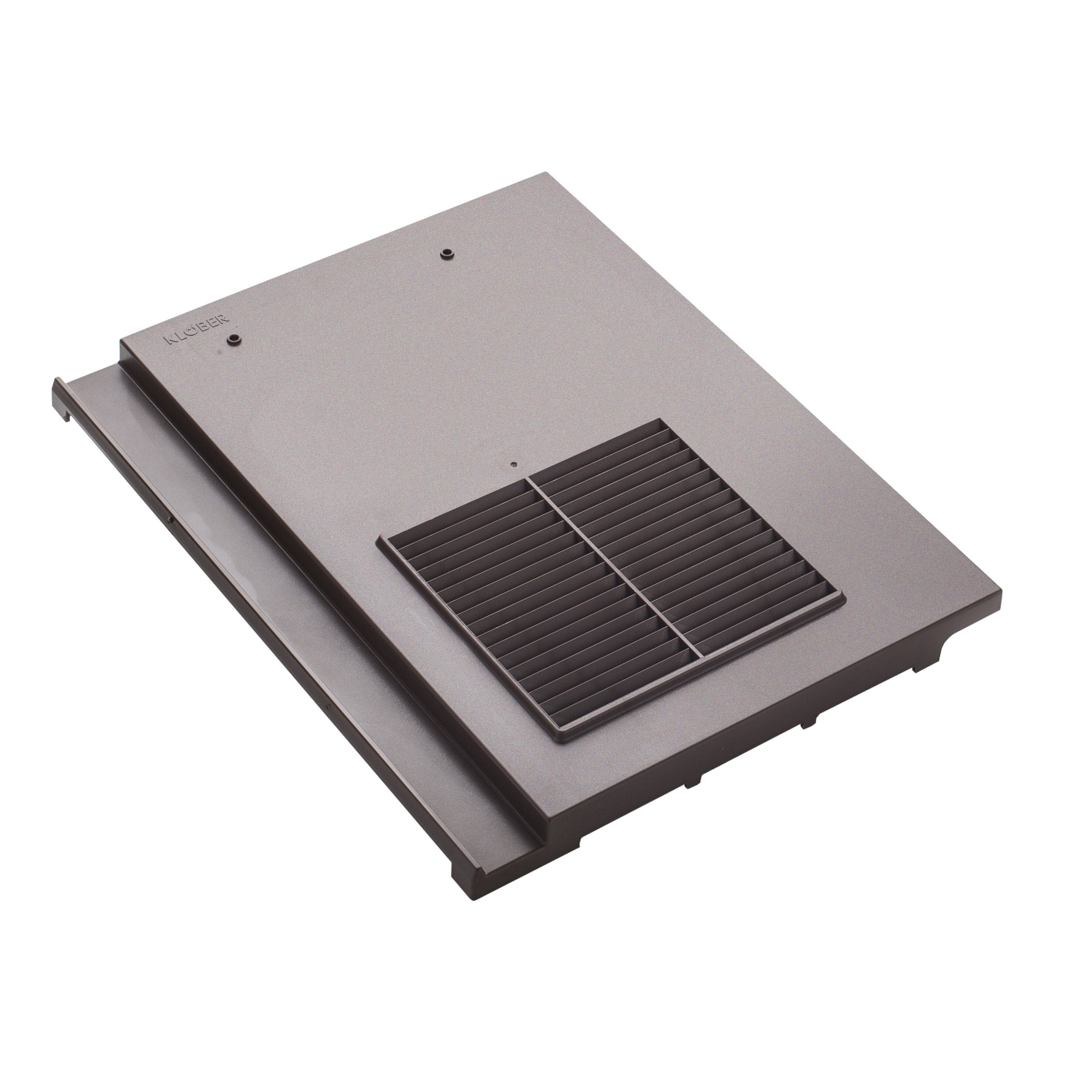

Brown KG9856-3-0247

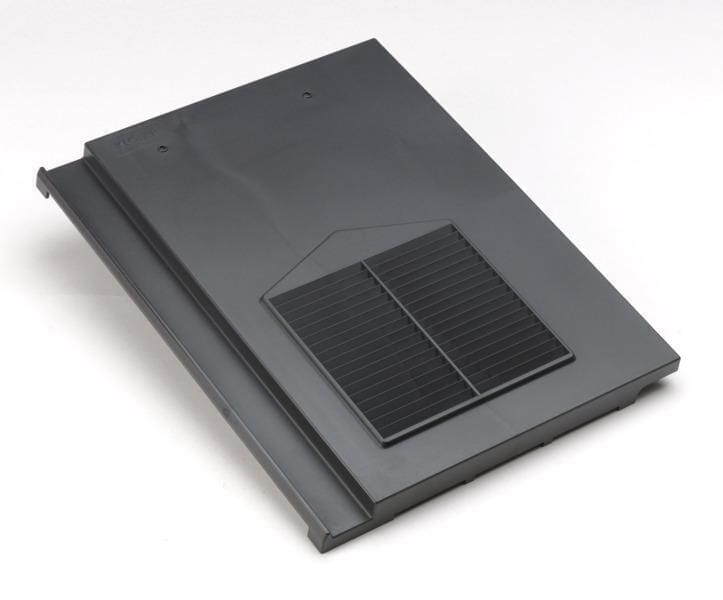

Slate Grey KG9856-3-0429

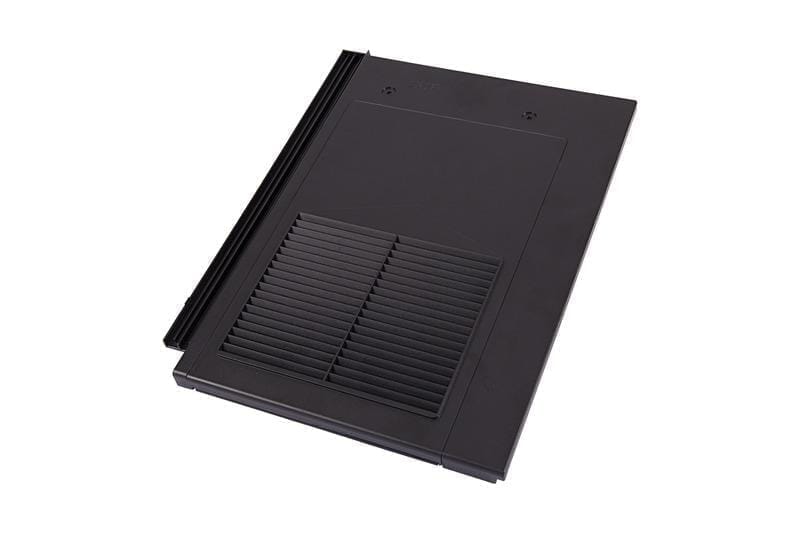

Black KG9856-3-0450

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
