Klober Profile-Line Single Pantile Tile Vent

SKU: KG9860-0152

Color: Terracotta
Price
£49.56 Incl. VAT
£41.30 Ex. VAT
See Full Range
Estimated Delivery:

2-3 working days

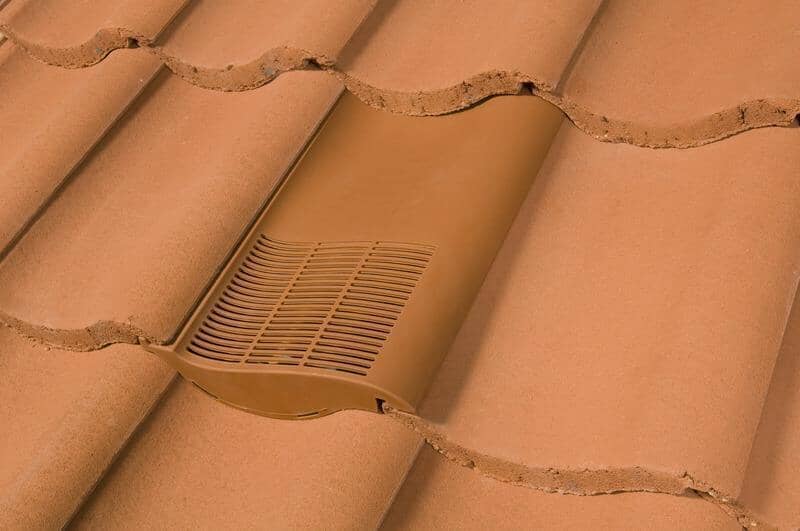

The Klober Profile-Line Single Pantile Tile Vent is an in-line vent tile shaped to match single pantile concrete interlocking tiles. Its built-in downpipe gives 10,000mm² of free ventilation directly into the roof space. Suitable for roof pitches of 20° and above.

For soil-pipe or mechanical extract use, fit the Klober 100mm adaptor (KG979100) and Klober Flexipipe 100mm (KG979900).

Compatible Tiles

Tile manufacturer Tile Notes
Sandtoft (Wienerberger) Shire Pantile
Redland Norfolk Pantile
Redland Fenland Pantile
Marley Anglia
Forticrete Centurion

For concrete interlocking single pantiles only – not for clay pantiles.

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Profile-matched to single pantile interlocking concrete tiles – sits in line with the surrounding tiles
  • Built-in downpipe gives direct ventilation into the roof space
  • 10,000mm² free ventilation area per vent
  • Fixing clip locates under the left-hand interlock of the adjoining tile
  • Use at high or low level
  • Can terminate a soil vent pipe or extract fan with the 100mm adaptor and Flexipipe

Specifications

Manufacturer code KG9860
Free ventilation area 10,000mm² per vent
Extraction connection Via 100mm adaptor KG979100 + Flexipipe 100/100mm KG979900 (or combined set KG979200)
Airflow resistance 12 / 48 / 192 Pa at 15 / 30 / 60 l/s (54 / 108 / 216 m³/h)
Dimensions (W x L x D) 229 x 384 x 65mm
Minimum pitch 20°
Material Polypropylene
Colours Antique Red, Terracotta, Brown, Slate Grey
Weight 0.55kg each
Manufacturer pack 10 per carton, 360 per pallet (Klober)
Vent spacing to BS 5250 2m centres (5,000mm²/m), 1m (10,000mm²/m), 0.4m (25,000mm²/m)
Guarantee 10 years against manufacturing defects (Klober)

Colours

Colour Manufacturer code

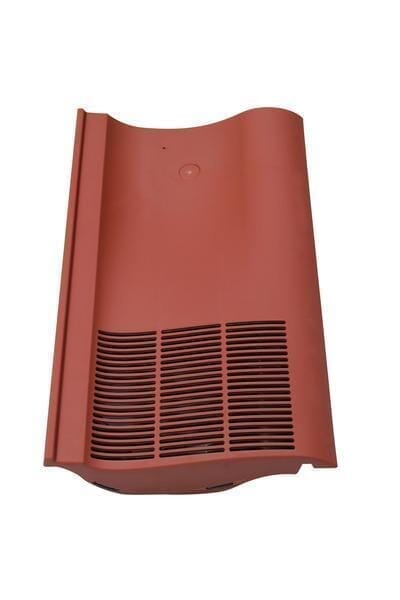

Antique Red KG9860-0116
Terracotta KG9860-0152

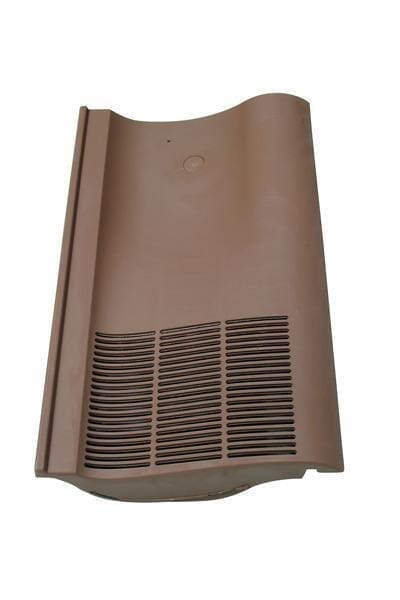

Brown KG9860-0247

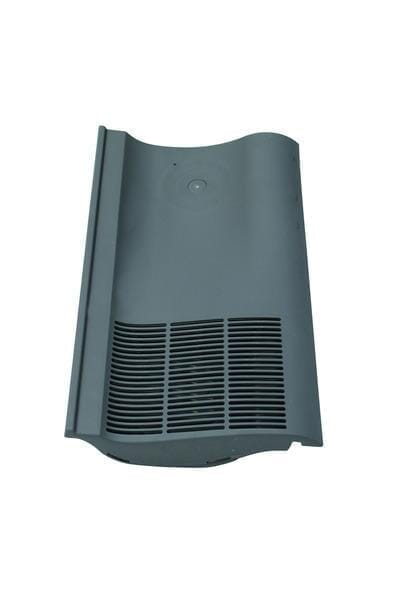

Slate Grey KG9860-0429

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
