Klober Uni-Line Tile Vent

SKU: KG9853-0152

Color: Terracotta
Price
£73.51 Incl. VAT
£61.26 Ex. VAT
See Full Range
Estimated Delivery:

2-3 working days

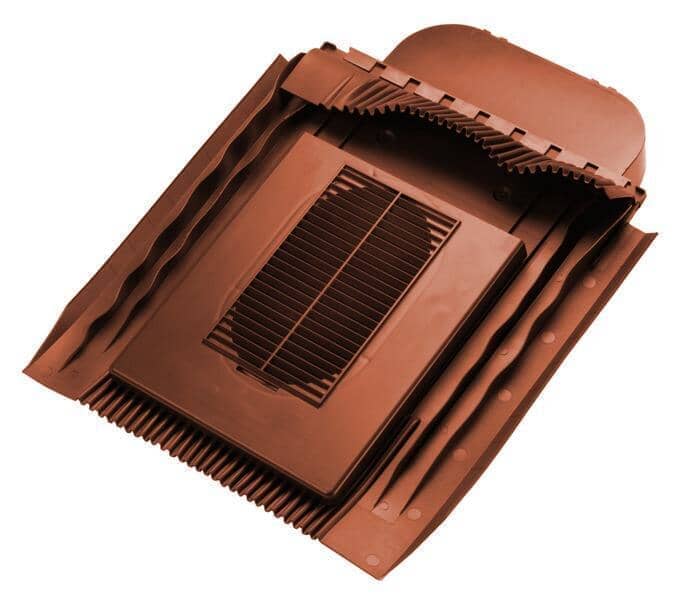

The Klober Uni-Line Tile Vent is an ultra-low-profile universal vent for most concrete interlocking roof tiles. It sits almost flush in the roofline and gives 10,000mm² of free ventilation into the roof space. Suitable for roof pitches of 20° and above.

The built-in downpipe connects directly to Klober Flexipipe 100mm (KG979900) for soil-pipe or mechanical extract use – no separate adaptor is needed.

Compatible Tiles

Suitable for Details
Suits Most concrete interlocking tiles
Minimum pitch 20°
Not suitable for Plain tiles (clay or concrete) – Klober compatibility chart. For plain tiles see the Klober Uni-Plain Tile Vent
Not suitable for (Klober datasheet) Redland Delta, Cambrian, Saxon and Richmond; Anchor Centurion and Anchor Slate; Marley Monarch; clay pantiles; Landmark slates

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Universal design – one vent for most concrete interlocking tiles
  • Ultra-low 33mm profile, almost invisible on the roofline
  • 10,000mm² free ventilation area
  • Built-in downpipe takes Flexipipe 100/100mm directly
  • Supplied with fixing wire clip and membrane-cutting template
  • Wind-tunnel tested (Klober)

Specifications

Manufacturer code KG9853
Free ventilation area 10,000mm²
Extraction connection Built-in downpipe to Flexipipe 100/100mm KG979900
Airflow resistance 3.5 / 14 / 56 Pa at 15 / 30 / 60 l/s (54 / 108 / 216 m³/h)
Dimensions 455 x 440 x 33mm (excluding downpipe)
Minimum pitch 20°
Material Soft and rigid UPVC

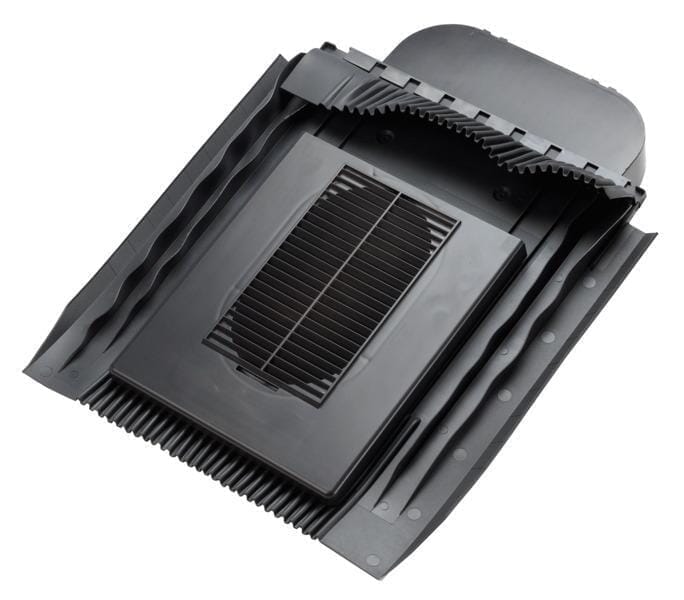

Colours Antique Red, Terracotta, Brown, Slate Grey
Weight 2.2kg
Pack quantity 1 (supplied with fitting instructions, template and wire clip)
Vent spacing to BS 5250 2m centres (5,000mm²/m), 1m (10,000mm²/m), 0.4m (25,000mm²/m)

Colours

Colour Manufacturer code
Antique Red KG9853-0116
Terracotta KG9853-0152
Brown KG9853-0247
Slate Grey KG9853-0429

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
