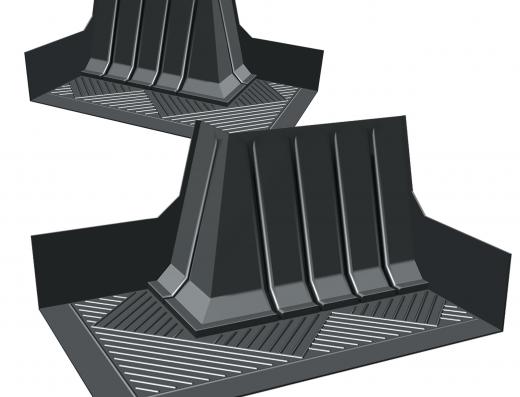

Manthorpe Catchment Corner Tray - Right Hand


£6.02 Incl. VAT
£5.02 Ex. VAT

Pay in 3 interest free payments with PayPal on checkout. Choose PayPal at checkout. Learn more


The Manthorpe Catchment Corner Tray - Right Hand is a crucial component for effective water management at the lower end of stepped tray runs. Specifically designed for gable edges, it provides robust protection against water ingress at the corners. The integral stop ends ensure that water is efficiently collected and retained within the tray, preventing leaks.

To facilitate proper drainage, the tray should be used in conjunction with a weep vent, allowing moisture to be directed safely onto the roof. Its preformed design ensures it holds itself rigid within the wall cavity, maintaining its shape and effectiveness over time. The easily raked out foam strip leaves a 25mm aperture, simplifying lead installation. Constructed for durability and reliability, the Manthorpe Catchment Corner Tray is an essential solution for maintaining the integrity of your building's water management system.

Why Choose the Manthorpe Catchment Corner Tray - Right Hand?

  • Right hand catchment tray for gable edges
  • Protect against water ingress
  • Integrated removable foam strip
  • Rigid & durable
  • Easy installation

Product Specifications:

Material: Polypropylene

Manufacturing Process: Vacuum formed

Size: 330mm (L) x 214mm (H)

System: Stepped

Coursing Height: 75mm (brickwork)

Hand: Right

Bed Size: 102.5mm

Pitch Range: 17.5° - 50°

Box Weight: 4.2kg
