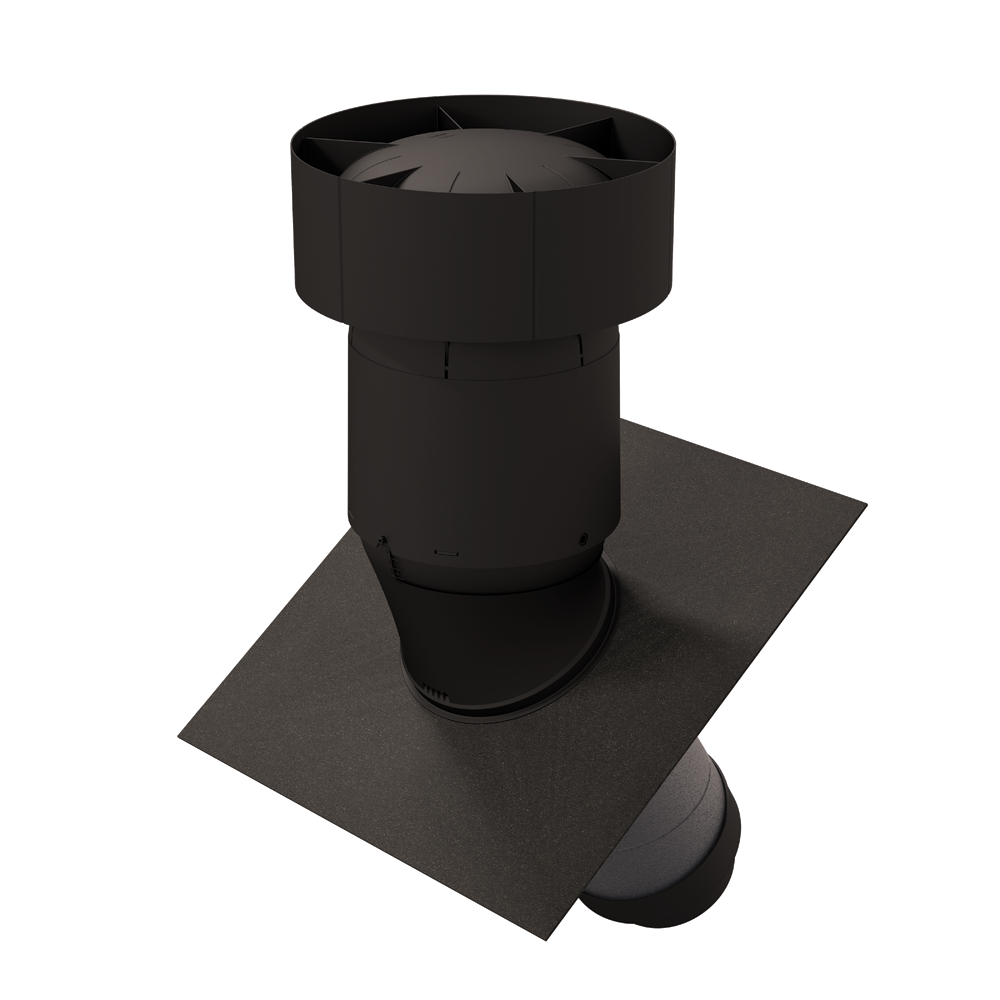

Roof Terminal 200-180 for Pitched Roofs | Ventus by Ubbink

SKU: 169880

Price
£152.04 Incl. VAT
£126.70 Ex. VAT
Estimated Delivery:

3-5 working days. Please note, if you live in Scotland, we will need to quote you for delivery costs. Please contact us if this is the case.

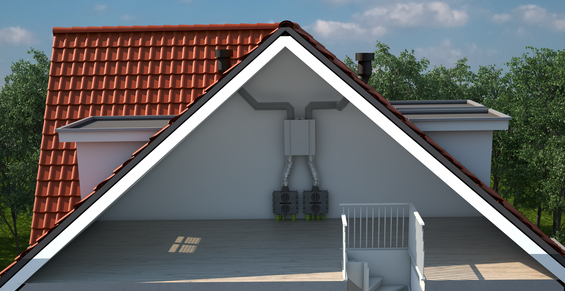

The Ventus is a new generation of insulated roof terminals from Ubbink, developed for heat recovery ventilation systems in residential and small commercial buildings. It's available in four installation kits covering a range of pitched and flat roof applications, making it a versatile option for ventilation projects of different scales and roof types.

Why Choose the Roof Terminal 200-180 for Pitched Roofs | Ventus by Ubbink?

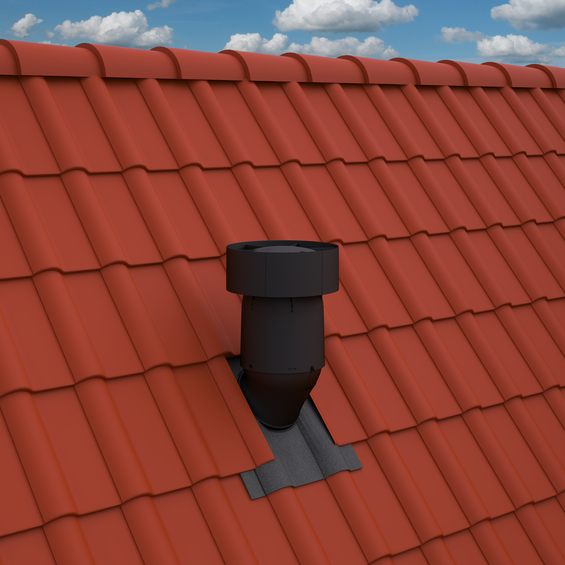

  • Suits a wide range of pitched roof applications, from 15° to 55°, with an integrated tile base
  • Quick and easy to install thanks to clever perpendicular roof penetration
  • Compatible with Aerfoam 160mm and 200mm ducting (adaptors available for 150mm and 180mm)
  • Optimised pressure loss for high performance airflow
  • Contributes to higher ventilation efficiency and lower energy consumption, helping reduce running costs for homeowners
  • Smart design with a raised outlet and integrated drains to prevent snow and rain ingress
  • Supports both supply and extract airflow
  • Black finish with Ubiflex standard flashing for a neat roof integration
  • Compact, space-efficient footprint for straightforward installation

Product Specifications:

Technical:
Comm. Dimension: 180 mm / 200 mm
Airflow direction: Supply / extract
Flashing material: Ubiflex standard
Colour: Black
Flashing: Yes

Dimensions:
Length gross: 600 mm
Height: 1065 mm
Width: 600 mm
Net weight: 6.5 kg

Logistical:
Intrastat: 39259080
Base unit packaging: Box
Packaging / Trade length: 600 mm
Packaging / Trade height: 500 mm
Number per packaging: 1
Gross weight: 7 kg
Packaging / Trade width: 800 mm

Deliveries are made on the basis the customer can accept the goods, or willingness to off load the goods, or having means of mechanical offload, this also applies to heavier items such as pallets etc. All deliveries are made ‘kerbside’ and often it can be at the discretion of the driver. A large majority of deliveries would be made on a large rigid tail-lift vehicle and off loaded via a pallet truck and only on to flat surfaces such as tarmac, concrete and pavers.

If you do have restricted access, please contact us prior to placing your order. We will always try to accommodate your needs. If a delivery fails due to access, we reserve the right to make a re-delivery charge.

All delivery charges are calculated when checking out. The delivery charges included are for the Mainland UK only and do not apply to the Scottish Highlands, or Isles off the Mainland. Additional charges may apply for deliveries that aren’t classed within the Mainland (this is classed by ourselves, suppliers and couriers) Please contact us on 01752 466151 or sales@roofingsuppliesuk.co.uk

Due to the nature of our business model, this can mean your order will be sent via multiple deliveries.

Whilst we will make every effort to deliver your goods within the stated/requested time frame, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules, so we would recommend the end user not to start/schedule any work until the goods arrive. Due to logistics of various couriers and suppliers we are unable to give times of deliveries. However, please call or email us on the day of the delivery and we will try to get an approximate time. Deliveries can take place from as earlier as 07:30 right up to 18:00 depending on the courier/haulier and taking into account local traffic etc.

You have 14 days from receiving your item(s) to return them should you wish to do so. Please contact us should you wish to arrange a refund/return. Any product marked cut to size, bespoke or made to order are non returnable and excluded from our refund policy.

  • Q: Will this affect the insulation performance of my roof?

    No, its right-angled roof duct design is built to maintain the roof's existing insulation values, thanks to the way it penetrates perpendicular to the roof.

  • Does the pitch angle need to be set manually, or does it adjust?

    It has stepless (infinitely adjustable) collar adjustment, so it stays perpendicular to the roof regardless of pitch, from 15° up to 55°.
