Manthorpe Castellated In-Line Roof Tile Vent

SKU: GTV-CS-TR

Color: Terracotta
Price
£37.84 Incl. VAT
£31.53 Ex. VAT
See Full Range
Estimated Delivery:

Manthorpe items currently an extended delivery time of 3-5 working days.

The Manthorpe Castellated in-line tile vent (GTV-CS) is made for "square top" castellated profile concrete tiles. It replaces a single tile to ventilate the roof space, or to act as the outlet for a soil stack or extractor fan, and keeps an unbroken roofline at high or low level. The internal weathering path gives 10,000 mm² of free airflow per vent while channelling any driven rain back onto the tiles, and a 4mm louvred grille keeps out debris and large insects.

For mechanical extraction or soil pipe termination, fit the Manthorpe GTV-AD Flexi Pipe Adaptor and a GRPA 455mm flexible pipe, or buy both together as our adaptor and pipe kit. With the adaptor fitted, free airflow is 8,800 mm².

Compatible Tiles

Tile manufacturer Tile Notes
Marley Ludlow Major Direct fit
Redland Renown Vent needs a small modification: cut down the two marked channels on the front face and snap off the two tabs so the vent sits in the Renown profile
Sandtoft Lindum Direct fit
Russell Cheviot Direct fit
Lagan Square Top Direct fit

All colours fit the same tiles – choose the colour closest to your roof.

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Replaces a single tile and sits in line with the roof for a discreet finish
  • 10,000 mm² free airflow per vent
  • 4mm louvred flyscreen grille
  • Integral sidelock clip for a secure fit
  • Independently wind tunnel tested by BRE for driving rain and high winds
  • Can be fitted by one person
  • Base outlet feeds straight into the roof space; adaptor available for extraction

Specifications

Manufacturer code GTV-CS
Free ventilation area 10,000 mm² per vent (8,800 mm² through the GTV-AD adaptor)
Extraction connection Rectangular base outlet; converts to 4" (110mm) with the GTV-AD adaptor
Dimensions 418 x 332 mm
Roof pitch 20° to 55° (do not install below 20°)
Maximum headlap 100 mm
Material PVC top, polypropylene base (injection moulded)
Weight 1.06 kg per vent
Manufacturer box quantity 4 vents (4.5 kg)
Standards and testing Datasheet references BS 5250 (moisture in buildings), BS 5534 (slating and tiling) and BS 490; BRE wind tunnel test report 267-473

Colours

Colour Manufacturer code
Terracotta GTV-CS-TR

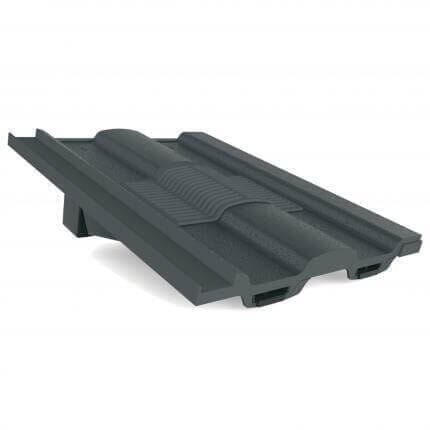

Grey GTV-CS-GR

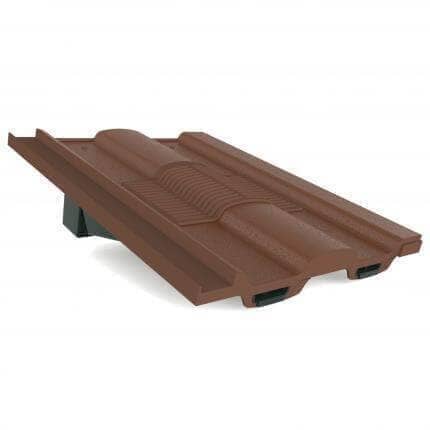

Brown GTV-CS-BR
Antique Red GTV-CS-AR

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
