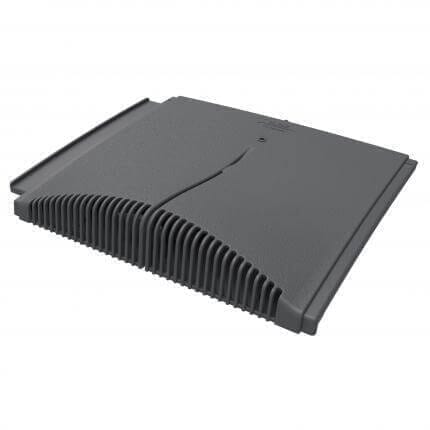

Manthorpe Plain Interlocking Roof Tile Vent

SKU: GTV-IP-TR

Color: Terracotta
Price
£42.52 Incl. VAT
£35.43 Ex. VAT
See Full Range
Estimated Delivery:

Manthorpe items currently an extended delivery time of 3-5 working days.

The Manthorpe Interlocking Plain Tile vent (GTV-IP) is made for small format interlocking (twin) concrete plain tiles. It replaces a single interlocking plain tile, laid in broken bond, with no batten cutting, to ventilate the roof space or to act as the outlet for a soil stack or extractor fan. A patented sliding top section adjusts the vent to the cover width of your tile, and the curved, in-line profile keeps an unbroken roofline. The internal weathering path gives 6,000 mm² of free airflow per vent behind a 4mm louvred grille.

Why Choose the Manthorpe Plain Interlocking Roof Tile Vent?

  • Patented sliding design adjusts to 300 mm or 312 mm tile cover widths
  • Replaces a single interlocking plain tile. No batten cutting
  • 6,000 mm² free airflow per vent
  • Suitable down to 22.5° roof pitch
  • 4mm louvred flyscreen grille
  • Independently wind tunnel tested by BRE
  • 4" pipe adaptor available for extraction

Product Specifications:

Manufacturer code GTV-IP
Free ventilation area 6,000 mm² per vent
Extraction connection 4" pipe adaptor fitted to the vent, then GRPA flexible pipe
Dimensions 277 x 330 mm
Roof pitch 22.5° to 55° (do not install below 22.5°)
Maximum headlap 95 mm
Vent spacing 1.2m centres for 5,000 mm²/m; 0.6m centres for 10,000 mm²/m; 0.24m centres for 25,000 mm²/m
Material PVC (injection moulded)
Weight 1.01 kg per vent
Manufacturer box quantity 6 vents (6.12 kg)
Standards and testing Datasheet references BS 5250, BS 5534 and BS 490; BRE wind tunnel test report P108-129

Colours

Colour Manufacturer code
Terracotta GTV-IP-TR
Grey GTV-IP-GR
Brown GTV-IP-BR
Antique Red GTV-IP-AR

Compatible Tiles

Tile manufacturer Tile Notes
Marley Ashmore Set the sliding top to position A (300 mm cover width)
Redland DuoPlain Set the sliding top to position A (300 mm cover width)
Forticrete Gemini Set the sliding top to position B (312 mm cover width)

All colours fit the same tiles. Choose the colour closest to your roof.

Please note:

For mechanical extraction or soil pipe termination, a 4" pipe adaptor fits to the vent and connects to a Manthorpe GRPA 455mm flexible pipe. This vent is not for standard (single) plain tiles. For those, use the Manthorpe Plain Tile vent.

Compatibility is based on the manufacturer's published guide. Tile ranges change. If you're not sure, send us your tile make and model and we'll check before you order.
