Manthorpe Universal Cowled Roof Tile Vent

SKU: CURV-TR

Color: Terracotta
Price
£50.36 Incl. VAT
£41.97 Ex. VAT
See Full Range
Estimated Delivery:

Manthorpe items currently an extended delivery time of 3-5 working days.

The Manthorpe Cowled Universal Roof Vent (CURV) ventilates the roof space, or acts as the outlet for a soil stack or extractor fan, on a wide range of interlocking tiled roofs. It is useful when there is no matching in-line vent for the tile, or when the roof covering is not known in advance. A flexible rubber flashing skirt with adhesive mastic backing is dressed to the tile profile, and a hooded cowl with an integral 4mm louvred grille keeps out the weather, debris and large insects.

The stepped outlet takes a 4" round, 5" round or 6" oval connection. The 4" outlet connects to a Manthorpe GRPA 455mm flexible pipe to continue the ducting into the roof space. Free airflow is 8,650 mm² through the 4" outlet, 12,750 mm² through the 5" outlet and 13,350 mm² through the 6" oval outlet.

Compatible Tiles

Suits Details
Tile types Large and small format interlocking tiles, flat or profiled, including deep bold roll profiles (Manthorpe does not publish a list of named models)
Roof pitch 12.5° minimum

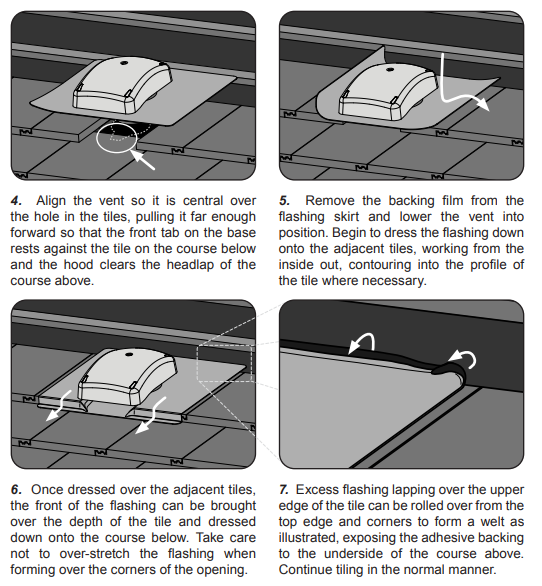

Installation Remove one tile, or cut the corners of two adjacent tiles to make a hole at least 180 mm wide; no batten cutting
Not listed for Plain tiles or slates – see our Manthorpe plain tile vents or ask us about slate vents

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Flexible flashing skirt with mastic backing dresses to flat or profiled tiles
  • Suits large and small format interlocking tiles, including deep bold roll
  • Stepped 4", 5" and 6" oval outlets for extraction or soil pipe termination
  • Hooded cowl with integral 4mm louvred grille
  • No batten cutting required
  • Independently wind tunnel tested by BRE
  • Can be fitted by one person

Specifications

Manufacturer code CURV
Free ventilation area 8,650 mm² (4" round outlet); 12,750 mm² (5" round outlet); 13,350 mm² (6" oval outlet)
Extraction connection Stepped spigot: 4" round (110 mm OD), 5" round (134 mm OD), 6" oval (max 176 mm wide)
Dimensions 490 x 545 mm (flashing)
Minimum roof pitch 12.5°
Vent spacing (4" / 5" / 6" outlet) 5,000 mm²/m: 1.73 / 2.55 / 2.67m centres; 10,000 mm²/m: 0.87 / 1.28 / 1.34m; 25,000 mm²/m: 0.35 / 0.51 / 0.53m
Material PVC hood, polypropylene base, polymer rubber flashing
Weight 1.78 kg
Pack quantity Single vent (2.03 kg boxed)
Standards and testing Datasheet references BS 5250, BS 5534 and BS 490; BRE wind tunnel test report P113518-1002

Colours

Cowl colour Manufacturer code
Terracotta CURV-TR
Grey CURV-GR

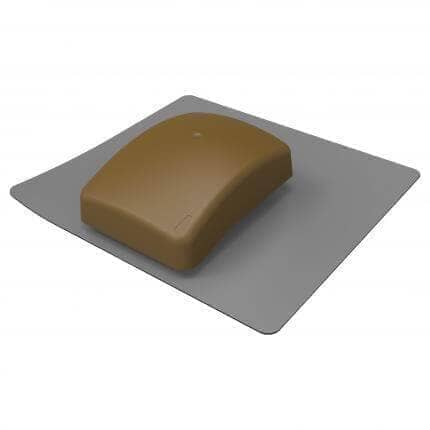

Brown CURV-BR
Black CURV-BL

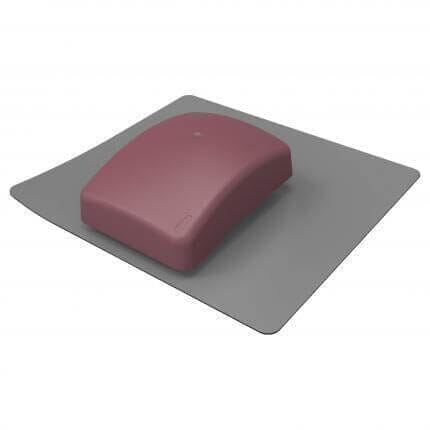

Antique Red CURV-AR

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
