Manthorpe Granular Plain Tile Roof Vent

SKU: GTV-PT-GRAN-SR

Color: Sand Red
Price
£35.39 Incl. VAT
£29.49 Ex. VAT
See Full Range
Estimated Delivery:

Manthorpe items currently an extended delivery time of 3-5 working days.

The Manthorpe Granular Finish Plain Tile vent (GTV-PT-GRAN) is the in-line plain tile vent with a sand-faced granulated finish, so it blends in on roofs covered with sand-faced plain tiles. It ventilates the roof space and can also act as the outlet for a soil stack or extractor fan. It takes the place of 3 plain tiles across 2 courses with no need to cut the battens, and gives 6,600 mm² of free airflow per vent behind a 4mm louvred grille.

For mechanical extraction or soil pipe termination, fit the Manthorpe GTV-AD Flexi Pipe Adaptor (fitted from inside the loft) and a GRPA 455mm flexible pipe, or buy both together as our adaptor and pipe kit. For smooth-faced tiles, see the standard Manthorpe Plain Tile vent.

Compatible Tiles

Suits Details
Tile type Sand-faced concrete and traditional clay plain tiles from the major UK and Irish manufacturers (Manthorpe does not publish a list of named models or colour matches)
Batten gauge 88 to 100 mm (minimum 88 mm with 38 mm battens)
Roof pitch 35° minimum
Not for Interlocking (twin) plain tiles – use the Manthorpe Interlocking Plain Tile vent

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Sand-faced granulated finish to match sand-faced plain tiles
  • Replaces 3 plain tiles across 2 courses – no batten cutting
  • 6,600 mm² free airflow per vent
  • 4mm louvred flyscreen grille
  • Independently wind tunnel tested by BRE
  • Adaptor available for extraction and soil pipe termination

Specifications

Manufacturer code GTV-PT-GRAN
Free ventilation area 6,600 mm² per vent (geometric free area)
Extraction connection Rectangular base outlet; converts to 4" (110mm) with the GTV-AD adaptor, fitted from inside the loft
Dimensions 386 x 331 mm
Roof pitch 35° to 90° (do not install below 35°)
Batten gauge 88 to 100 mm
Material Sand-faced PVC top, polypropylene base (injection moulded)
Weight 810 g per vent
Manufacturer box quantity 6 vents (5.45 kg)
Standards and testing Datasheet references BS 5250:2021, BS 5534:2014+A2:2018 and BS 490:2011+A1:2017; BRE wind tunnel test report 287-217

Colours

Colour Manufacturer code

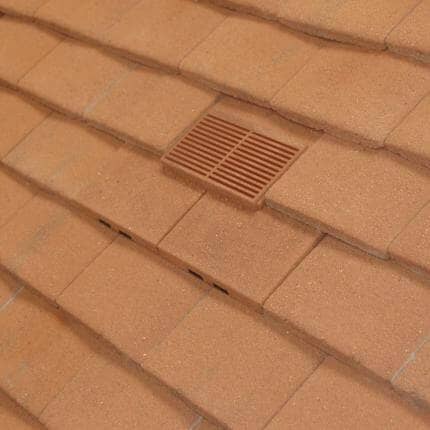

Sand Red GTV-PT-GRAN-SR

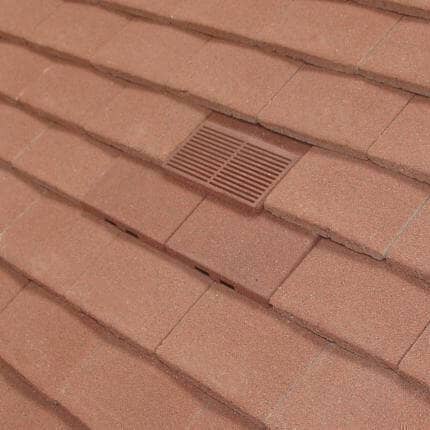

Old Red GTV-PT-GRAN-OR

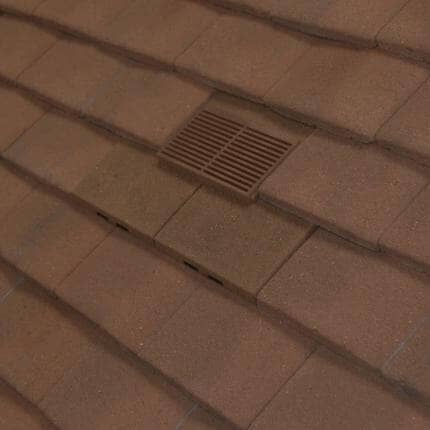

Light Brown GTV-PT-GRAN-LB

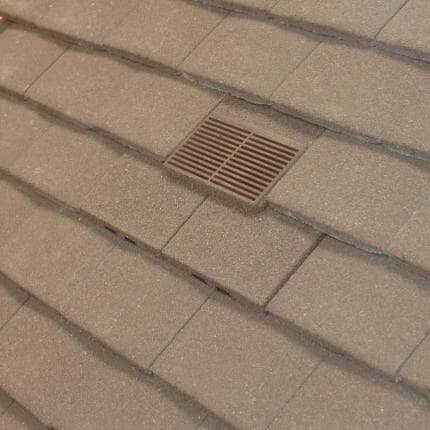

Antique Brown GTV-PT-GRAN-AB

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
