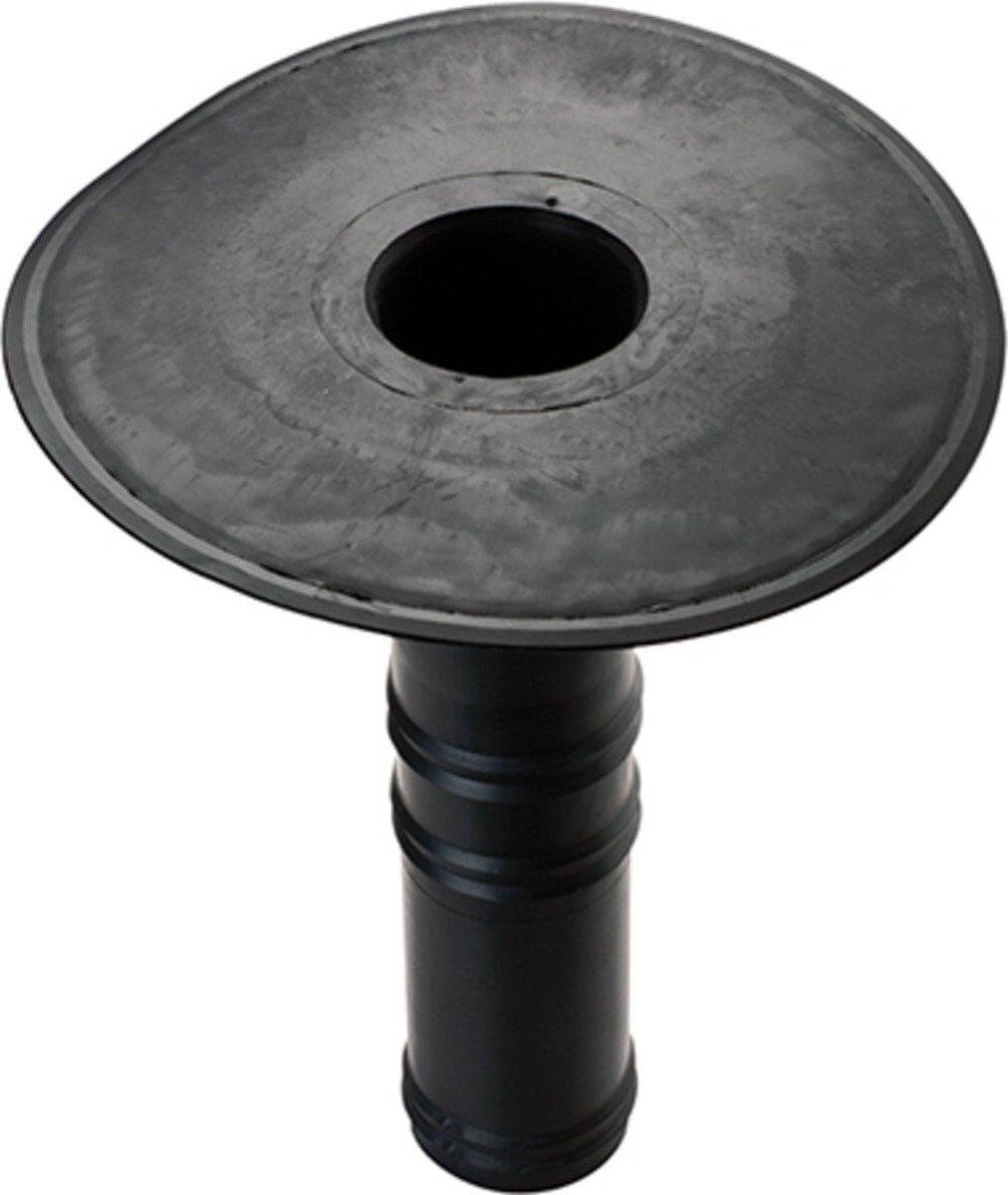

100mm EPDM Roof Drain


£27.77 Incl. VAT
£23.14 Ex. VAT

Shipping calculated at checkout


The new TPE roof outlets with smooth flange have been properly developed as the ideal solution for the adhesion of synthetic EPDM, butyl rubber and similar waterproofing membranes. Since no chemical welding is possible, the smooth flange offers an ideal laying support for glues or self-adhesive bands. The spigot is provided with anti-infiltration tongues to prevent infiltration in case of water back-up.

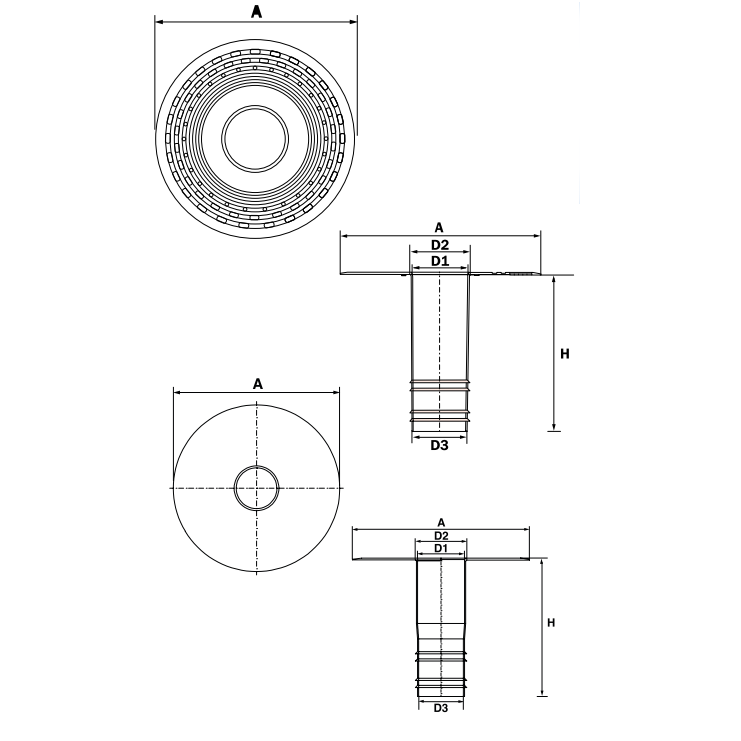

           For pipes  A             D1           D2           D3           H

63mm   63           320         51           60           49           400
75mm   75           320         63           70           62           400
82mm   82           320         69           75           68           400
90mm   90           320         80           84           79           400
100mm 100         320         86           90           85           400
110mm 110         380         95           101         94           400
125mm 125         380         109         115         108         400
140mm 140         380         128         134         127         400
150mm 150         380         134         140         132         400
160mm 160         380         140         146         139         400
