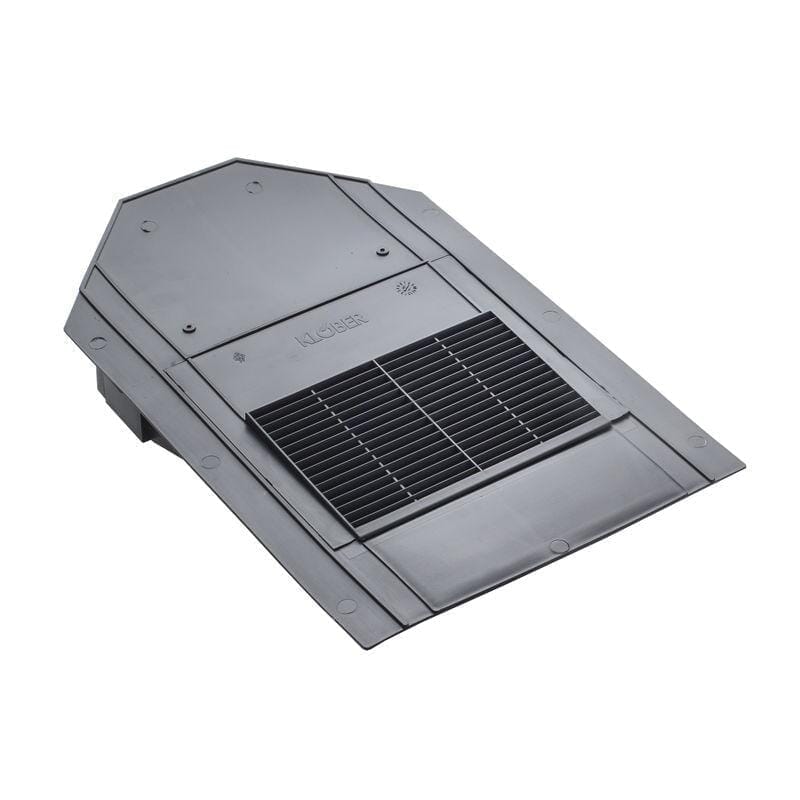

This slate grey mini uni-line slate roof tile vent from Klober is compatible with most small man-made fibre cement or natural slate profiles up to 400mm x 250mm (16 x 10”) natural double-lap slates and man-made fibre cement slate tiles.
The built-in downpipe allows direct ventilation into the roof and delivers 6,500mm² of ventilation coverage. Additionally, it can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems.
Why Choose a Mini Uni-Line Slate Vent?
- Built in downpipe
- Gives you direct ventilation to your roo
- Provides 6,500mm² of ventilation coverage
- Can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems
- Low-profile solution
- Discreet & practically invisible
Colour: Slate Grey
Width: 300 mm
Length: 450 mm
Depth: 147.5 mm
Weight: 0.78 kg
Material Description: UV resistant Polypropylene
Minimum pitch: 22.5 degrees
Ventilation Area: 6500 mm2
Vent tile spacing 5 000 mm2: 1.2 m
Vent tile spacing 10 000 mm2: 0.6 m
Airflow resistance 15 litres/sec: 24 pascals
Airflow resistance 30 litres/sec: 96 pascals
Airflow resistance 60 litres/sec: 384 pascals
Which adaptor for 100mm duct ventilation do i need for this slate vent?
The Klober Mini uni-line slate vent does not need an adapter - you can connect a 100mm flexi-pipe directly to the back of the vent.
