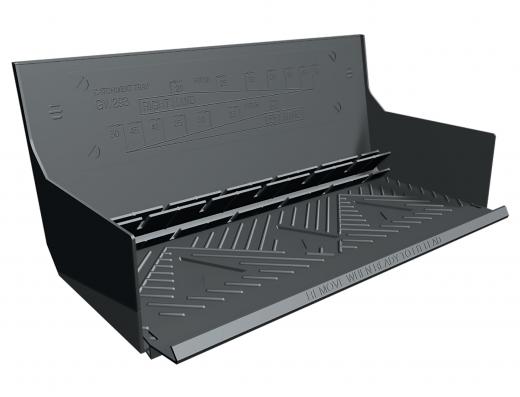

Manthorpe Catchment Tray

SKU: GW293

£2.65 Incl. VAT
£2.21 Ex. VAT

Pay in 3 interest free payments with PayPal on checkout. Choose PayPal at checkout. Learn more


The Manthorpe Catchment Tray is an essential component for managing water at the lower end of stepped tray runs. This preformed tray holds itself rigidly within the wall cavity, ensuring stability and effective moisture control. Integral stop ends are designed to collect water within the tray, preventing overflow.

Angled ribs and an injection moulded mortar trap work together to catch falling mortar, maintaining a clear drainage path and reducing the risk of blockages. Though, care should still be taken to keep trays clear from mortar and other building debris. The removable mortar clip provides a 25mm aperture for easy lead insertion.

For optimal performance, it is recommended to use the Catchment Tray with a weep vent, allowing collected moisture to drain safely onto the roof. Manufactured with durability in mind, the Manthorpe Catchment Tray is a reliable solution for maintaining clean and efficient drainage in cavity wall constructions.

Why Choose the Manthorpe Catchment Tray?

  • Catchment tray for lowest point of abutments
  • Removable front mortar clip
  • Injection moulded mortar trap
  • Rigid & durable
  • Easy installation

Product Specifications:

Material: Polypropylene

Manufacturing Process: Injection moulded

Size: 330mm (L) x 155mm (H)

System: Stepped

Coursing Height: 75mm (brickwork)

Hand: Ambidextrous

Bed Size: 102.5mm

Pitch Range: 17.5° - 50°

Packaging: 25 per box

Box Weight: 6.4kg
