Description

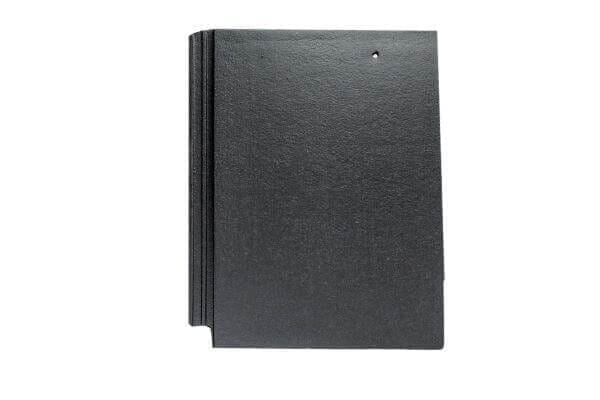

Marley, renowned experts in concrete roof tiles, bring you the Edgemere Concrete Interlocking Roof Tiles, a design combining strength, durability, and cost-effectiveness. These tiles mimic the clean, sleek look of traditional slate, greatly enhancing kerb appeal. Despite being only 18mm thick, these tiles deliver the charm of classic slate at a more affordable price point.
With a reputation for excellent coverage and superior durability, Marley Concrete Roof Tiles are amongst the most popular in the market. If you're seeking a reliable and cost-effective roofing solution that doesn't compromise on aesthetics, Marley's Edgemere Concrete Interlocking Roof Tiles could be the perfect choice.
Why Choose Marley Concrete Interlocking Roof Tiles?
- Traditional concrete hip fitting
- Quick & easy to install
- Compliable with our full range of ventilation and dry fix systems
- Suitable for roof pitches between 15 and 50 degrees

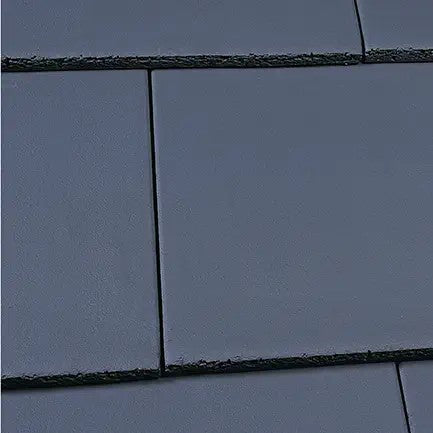

- Available in a range of colours
- Compatible with all Marley dry hip systems
Product Specifications:
Material: Concrete

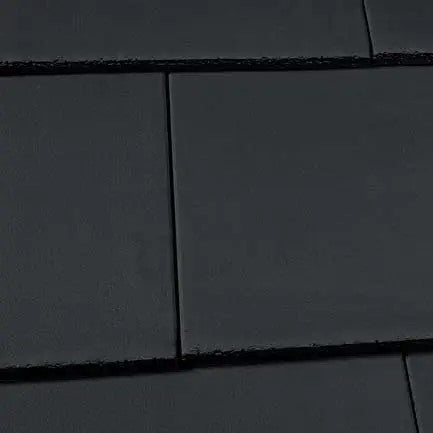

Colour: Anthracite
Length: 420mm
Thickness: 18mm
Width: 330mm
Finish: Smooth
Size of Tile: 420mm x 330mm
Minimum Pitch: 22.5° Smooth (75mm headlap) 17.5° Smooth (100mm headlap)
Maximum Pitch: 90° Minimum Headlap 75mm (22.5°and above) 100mm (below 22.5°)
Maximum Gauge: 345mm
Cover Width: 295mm (nominal)
Covering Capacity: 9.7 slates/m² at 75mm headlap 10.5 slates/m² at 100mm headlap
Weight of Tiling: 44kg/m² (0.43kN/m²) at 75mm headlap 47.5kg/m² (0.47kN/m²) at 100mm headlap
Battens Required: 2.9 lin.m/m² at 75mm headlap 3.1 lin.m/m² at 100mm headlap
Batten Size Recommended: 38 x 25mm for rafters/supports not exceeding 450mm centres 50 x 25mm for rafters/supports not exceeding 600mm centres
Tile Nails: 45mm x 3.35mm
Hanging length: 395mm (nominal)
Fixing clips: Eaves, verge and slate clips
Authority: BS EN 490
