Description

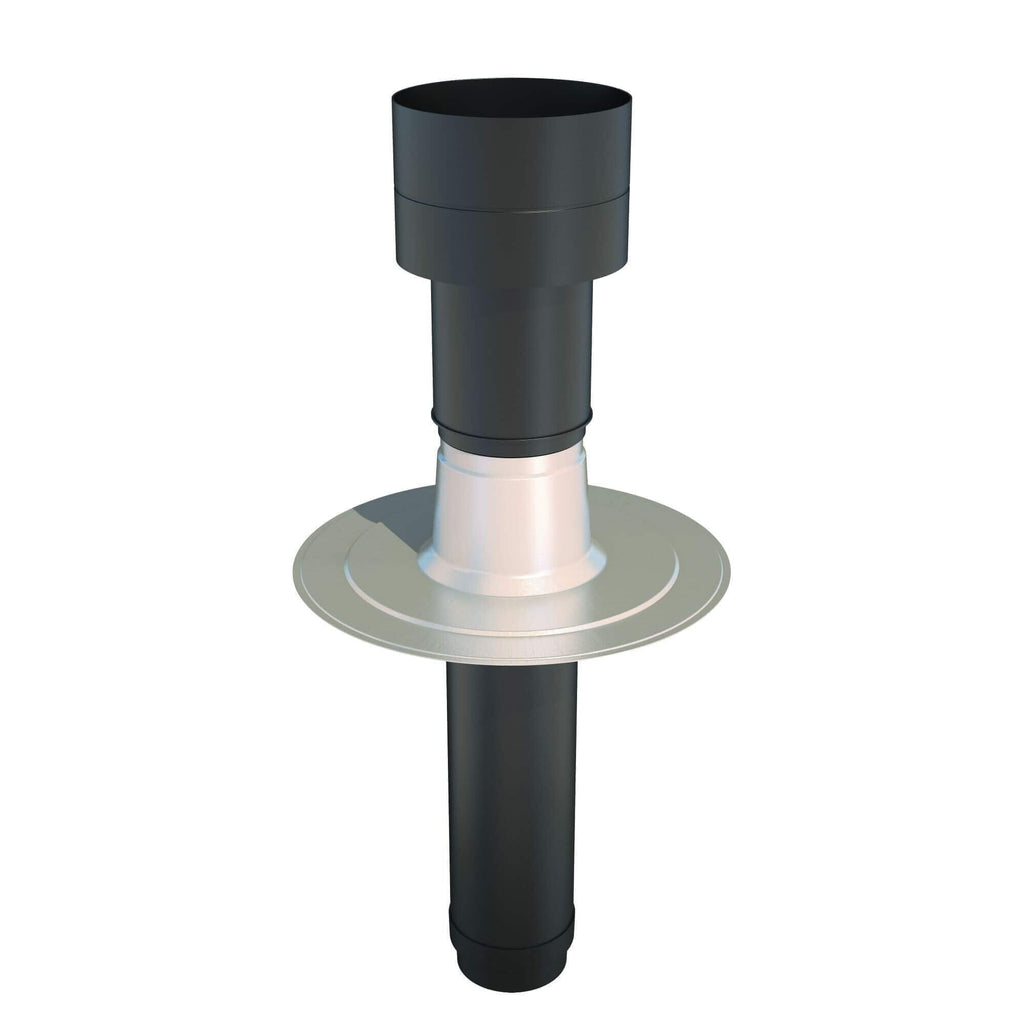

The OFT terminal range is suitable for use with soil & vent systems and for both mechanical and natural (passive) ventilation installations.
The OFT 5 range has a higher insulation value above the roof space which therefore reduces the risk of condensation.
Please note - this unit is provided as a 166mm diameter stack with a reducer to bring size down to 150mm
Benefits
Large free vent area/Low Pa resistance
Fully Insulated to the cowl
2 piece stack aluminium flange
Application
Allows termination through a flat roof void to ducting up to 180mm when used with reducers
Diameter: 150mm
Height above roof: 380mm
Flange Diameter: 490mm
Depth below roof: 608mm
Free vent area: 14,400mm²
Pa resistance: 1.3
-
Does this flat roof vent need a ‘mushroom’ on the top to prevent rain etc or is this all that is required? Thank you.
This item is provided with a hood/cowl on top so no need to purchase anything extra.
