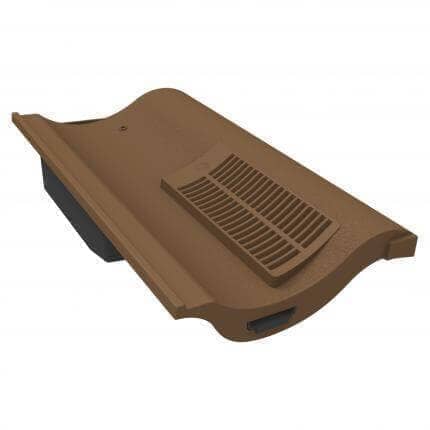

Manthorpe Single Pantile Roof Tile Vent

SKU: GTV-SP-TR

Color: Terracotta
Price
£31.45 Incl. VAT
£26.21 Ex. VAT
See Full Range
Estimated Delivery:

Manthorpe items currently an extended delivery time of 3-5 working days.

The Manthorpe Single Pantile in-line tile vent (GTV-SP) is a small format vent for interlocking concrete single pantiles. It replaces a single tile, with no batten cutting, to ventilate the roof space or to act as the outlet for a soil stack or extractor fan, keeping an unbroken roofline at high or low level. The internal weathering path gives 5,000 mm² of free airflow per vent while channelling any driven rain back onto the tiles, and a 4mm louvred grille keeps out debris and large insects.

For mechanical extraction or soil pipe termination, the 4" (110mm) round outlet on the base connects directly to a Manthorpe GRPA 455mm flexible pipe – no separate adaptor is needed.

Compatible Tiles

Tile manufacturer Tile Notes
Marley Anglia Direct fit
Redland Fenland Direct fit
Sandtoft Shire Direct fit

All colours fit the same tiles – choose the colour closest to your roof.

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Replaces a single pantile, laid in straight bond, with no batten cutting
  • 5,000 mm² free airflow per vent
  • 4mm louvred flyscreen grille
  • Integral sidelock clip for a secure fit
  • Independently wind tunnel tested by BRE
  • Can be fitted by one person
  • 4" round outlet connects straight to GRPA flexible pipe for extraction

Specifications

Manufacturer code GTV-SP
Free ventilation area 5,000 mm² per vent
Extraction connection 4" (110mm) round spigot outlet – connects directly to GRPA flexible pipe
Dimensions 395 x 230 mm
Roof pitch 20° to 55° (do not install below 20°)
Maximum headlap 125 mm
Vent spacing 1 vent per 1.0m for 5,000 mm²/m; 0.5m centres for 10,000 mm²/m; 0.2m centres for 25,000 mm²/m
Material PVC top, polypropylene base (injection moulded)
Weight 640 g per vent
Manufacturer box quantity 6 vents (4.22 kg)
Standards and testing Datasheet references BS 5250, BS 5534 and BS 490; BRE wind tunnel test report 104-059

Colours

Colour Manufacturer code
Terracotta GTV-SP-TR
Grey GTV-SP-GR
Brown GTV-SP-BR
Antique Red GTV-SP-AR

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
