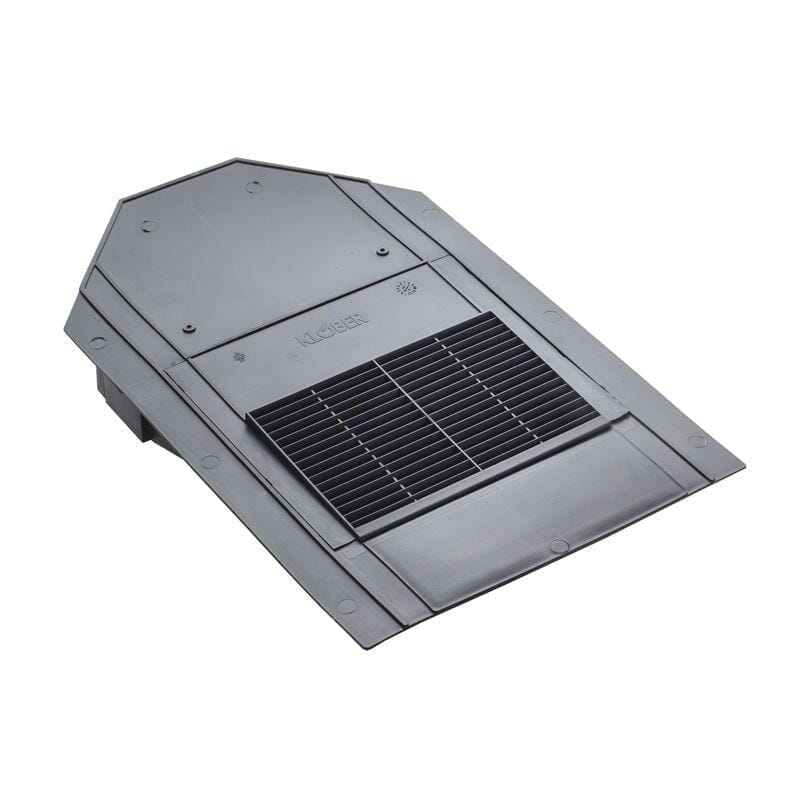

Klober Mini Uni-Line Slate Vent - Dark Slate

SKU: KG9631-0403

Price
£46.01 Incl. VAT
£38.34 Ex. VAT
See Full Range
Estimated Delivery:

2-3 working days

The Klober Mini Uni-Line Slate Vent (Dark Slate) is an in-line vent for small slates up to 400 x 250mm. Its built-in downpipe gives 6,500mm² of free ventilation into the roof space. Suitable for roof pitches of 22.5° and above.

The downpipe connects to Klober Flexipipe 100mm (KG979900) for soil-pipe or mechanical extract use. Also available in Slate Grey.

Compatible Slates

Suitable for Details
Natural slate Double-lap slates up to 400 x 250mm (16" x 10")
Fibre cement slate Small man-made slates up to 400 x 250mm
Minimum pitch 22.5°
Installation note A 270mm section of the middle batten is cut out and a support batten added under the upper batten
Larger slates For 500 x 250mm and 600 x 300mm slates use the Uni-Line Slate Vent

Compatibility is based on the manufacturer's published guide. Tile ranges change – if you're not sure, send us your tile make and model and we'll check before you order.

Features

  • Sized for small natural and fibre cement slates
  • In-line design, almost invisible on the roof
  • 6,500mm² free ventilation area
  • Built-in downpipe takes Flexipipe 100/100mm
  • Use with Klober Underlay Seal (KG973100)
  • Wind-tunnel tested (Klober)

Specifications

Manufacturer code KG9631-0403
Free ventilation area 6,500mm²
Extraction connection Built-in downpipe to Flexipipe 100/100mm KG979900
Dimensions 300 x 450 x 147.5mm
Minimum pitch 22.5°
Material UV-resistant polypropylene
Colour Dark Slate
Weight 0.78kg
Vent spacing to BS 5250 1.2m centres (5,000mm²/m), 0.6m (10,000mm²/m)

Need help choosing the right vent? Call 01752 466151 or email sales@roofingsuppliesuk.co.uk and our team will help you check.
